Odyssey PC2250ST Battery NSN 6140-01-485-1472

Where to Purchase in an Increasingly Online World

Military Humvee Batteries

When companies see a growing demand for a product, one would expect to see that trend reflected in production. However, despite the need for 6TMF batteries increasing, there remains only one manufacturer producing and selling them at an affordable cost.

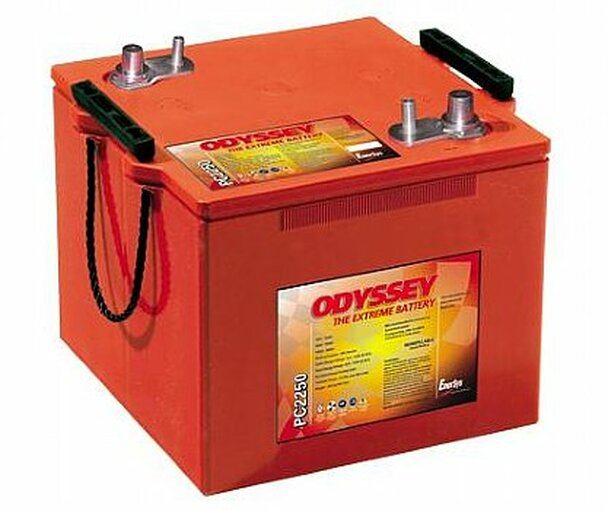

Explicitly used by military branches for their Humvee vehicles, the Odyssey PC2250ST (NSN 6140-01-485-1472) Battery is crucial for running a smooth operation on the job. Shipped fully charged, it has a design life of twelve years. The Odyssey’s rugged construction can be mounted at any orientation, with rope lifting handles for easy application to the HMMWV.

Military Humvees- or High Mobility Multipurpose Wheeled Vehicles- are military-grade trucks that need military-grade battery power. Built for tactical command and special purpose shelter carriers throughout all areas of the modern battlefield, these vehicles call for reliable service life and amp-hours hours that are guaranteed to last.

Unfortunately, with the increasing quantity needed per regime, the price points on these battery systems run exceptionally high per unit. With limited purchasing options available, what alternatives even exist?

Thankfully in this ever-changing world of online purchasing, Powerstride has emerged as the only retailer selling the PC2250ST Battery online for a massively discounted price. With a minimum group size purchase quantity of only two batteries, Powerstride prides itself on our ability to deliver quality products at incomparably competitive prices.

The performance features and PC2250 Design of the Battery include as follows:

PC 2250 Design: NSN 6140-01-485-1472

  • Absorbent glass mat (AGM) technology
  • 12V battery pure VRLA
  • 11.26"L x 10.59"W x 9.17"H
  • Rugged construction
  • Dual SAE DIN Taper and 3/8" stud
  • Can be mounted in any orientation
  • Rope lifting handles
  • US DOT and IATA certified non-spillable
  • 1010 Cranking Amps
  • Shipped fully charged - just install and go
  • Container and cover made from oil-resistant plastic
  • 80% Depth of Discharge

Performance Features:

  • PHCA: 2,250A at 80°F (27°C); for 5 seconds
  • CCA: 1,225A at 0°F (-18°C)
  • CA/MCA: 1,550A at 32° (0°C)
  • HCA: 1,730 at 80°F (27°C)
  • Reserve Capacity: 240 minutes on 25amps
  • Short circuit current: 5,000A
  • Deep cycling capability: 400 at 80% DOD
  • Design life: 12 years
  • Typical service life: 6 to 8 years
  • 12225 Cold Cranking Amps

Powerstride Battery: Proud to Serve Our Military

With free ground shipping, Powerstride runs laps around any other companies selling conventional batteries of this caliber. Side-stepping the headache of purchasing in person, the Odyssey Battery is a compatible replacement for the NSN 6140-01-485-1472 available online. (see also: comparable with Interstate A6TL, Interstate 6TL, Deka 6TMF, Hawker Armasafe Plus, Hawker 9750N7025, Fiamm FGX12120, and Exide 6TL)

Powerstride batteries are proud to serve the military with the production of such an essential piece of the puzzle- so much so that all of our products are exclusively American-Made. By being made in the USA, Powerstride attests to zero crossover issues with government contracts, including orders from companies like Lockheed Martin.

Here are a few more of Powestride’s other battery offerings:

  • EnerSys forklift batteries
  • BCI International Batteries
  • powersport vehicles
  • volt golf cart batteries
  • scrubber batteries
  • AGM batteries
  • volt golf cart batteries
  • AGM batteries
  • NorthStar batteries
  • volt golf cart batteries
  • Battery Chargers
  • AGM batteries
  • volt golf cart batteries
  • AGM batteries
  • Deep cycle batteries.

Undeniably the best option for Humvee power for over 80 years, Powerstride operates by the slogan “service for the distance” as not only a mantra- but a promise of service, quality, and excellence.

To purchase this heavy-duty military and marine battery, the Odyssey PC2250ST, and for more information on the make and model, visit us online here.
